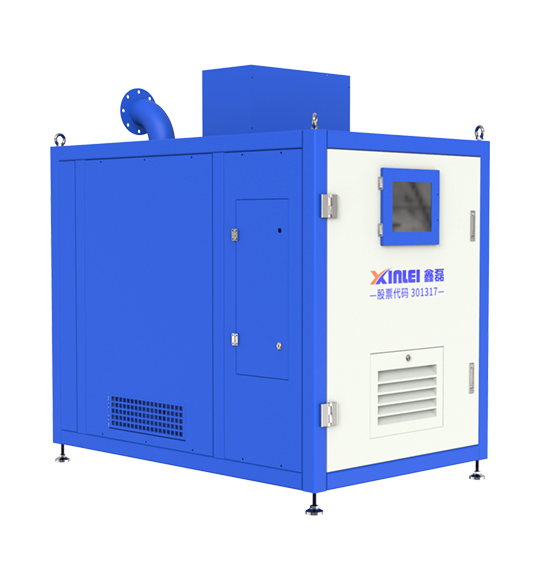

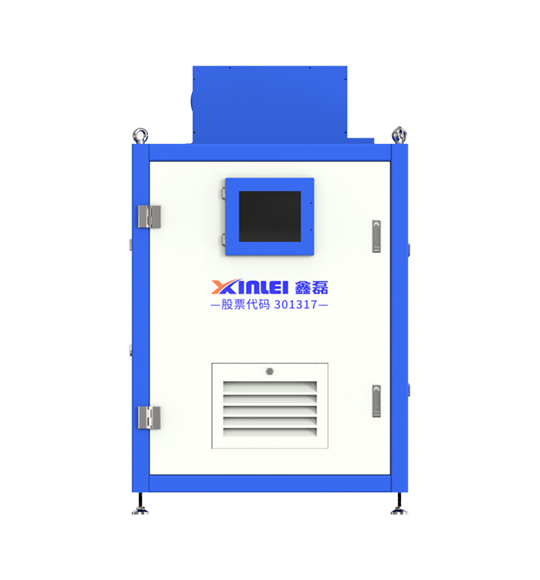

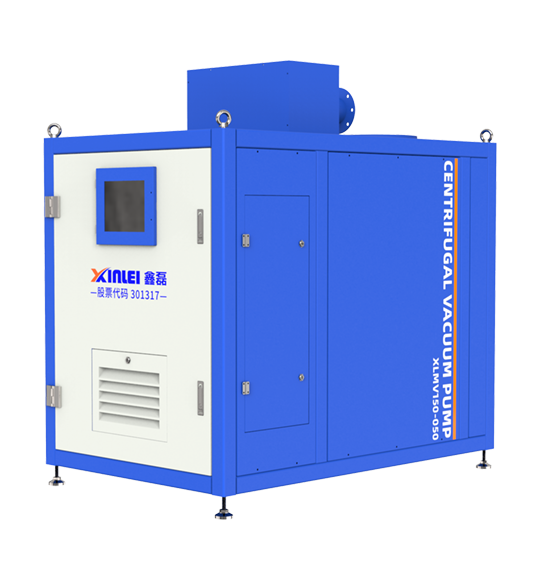

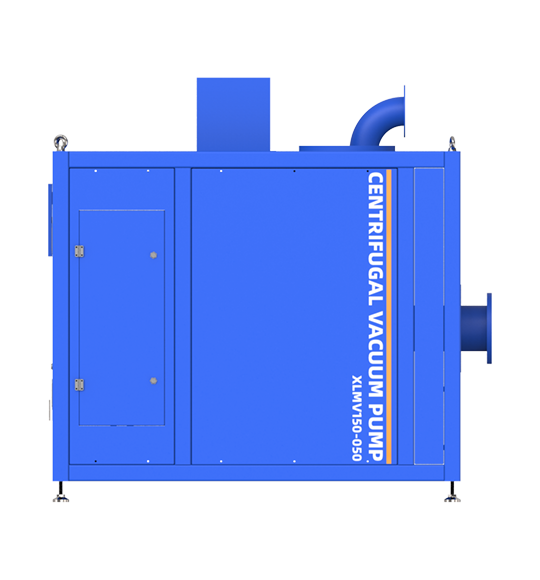

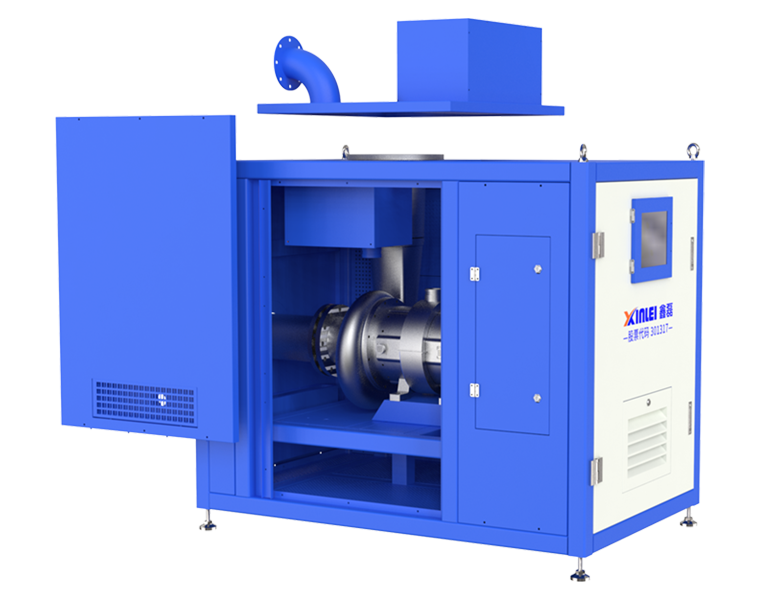

Permanent Magnet Variable Frequency Centrifugal Vacuum Pump

The magnetic levitation centrifugal vacuum pump integrates mature technologies such as magnetic levitation, frequency conversion, high-speed permanent magnet synchronous motor and high-speed impeller. The active levitation magnetic bearing can keep the vacuum pump rotor in the best position. The frequency conversion technology realizes the low-current start-up and full-condition intelligent adjustment of the vacuum pump. The application of high-speed motor and high-speed impeller realizes high efficiency of the whole machine, small size and light weight. Compared with traditional vacuum pumps, magnetic levitation centrifugal vacuum pumps have no gear, no need for lubricating oil, low vibration, low noise, and can save energy by about 20%.

Power：55-750kWPressure：30-70kPa

Get Product Quotation

Download Product Information

Features Core Technology Machine structure IOT Technology Application Scenarios Product Recommendation

Features

High efficiency and energy saving

Compared with water ring vacuum pump, it can reduce power consumption by more than 30%.

Long life (semi permanent)

Magnetic suspension bearing technology is adopted. It has been designed semi permanently for more than 20 years, and the efficiency does not decay in the life cycle.

Low noise and no vibration

The noise is less than 85 dB, no vibration, no foundation or anchor bolts.

Highly integrated, easy to install

The whole machine is highly integrated, small in size, light in weight and easy to install.

Maintenance free without lubrication

The 100% oil-free magnetic bearing system avoids secondary pollution and eliminates the need for regular maintenance and replacement of bearings.

Simple operation and intelligent control

Intelligent and humanized touch screen, with 5 operation modes and 5 protection functions.

Core Technology

Three-dimensional impeller

Adopt high hardness heat treatment aviation aluminum AL7075, high strength, suitable for high temperature and high pressure of the harsh working conditions. Precision manufactured by the 5 axis machining center, the tolerance is kept below 5/1000 mm. The power transfer efficiency can reach 100% due to the direct connection between the impeller and the shaft.

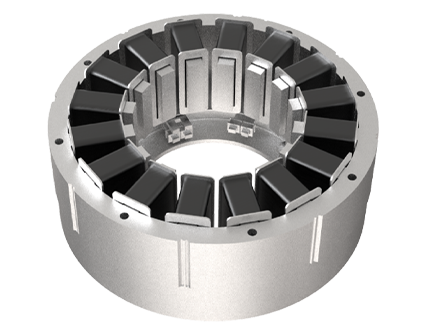

High speed permanent magnet airend

High efficiency permanent magnet synchronous motor (PMSM) is adopted, with efficiency ≥ 96%. The motor shaft is directly connected with the impeller, and the transmission efficiency is 100%; It can realize accurate speed regulation, up to 50000 r / min; The insulation grade is class H (maximum temperature resistance 180 ° C).

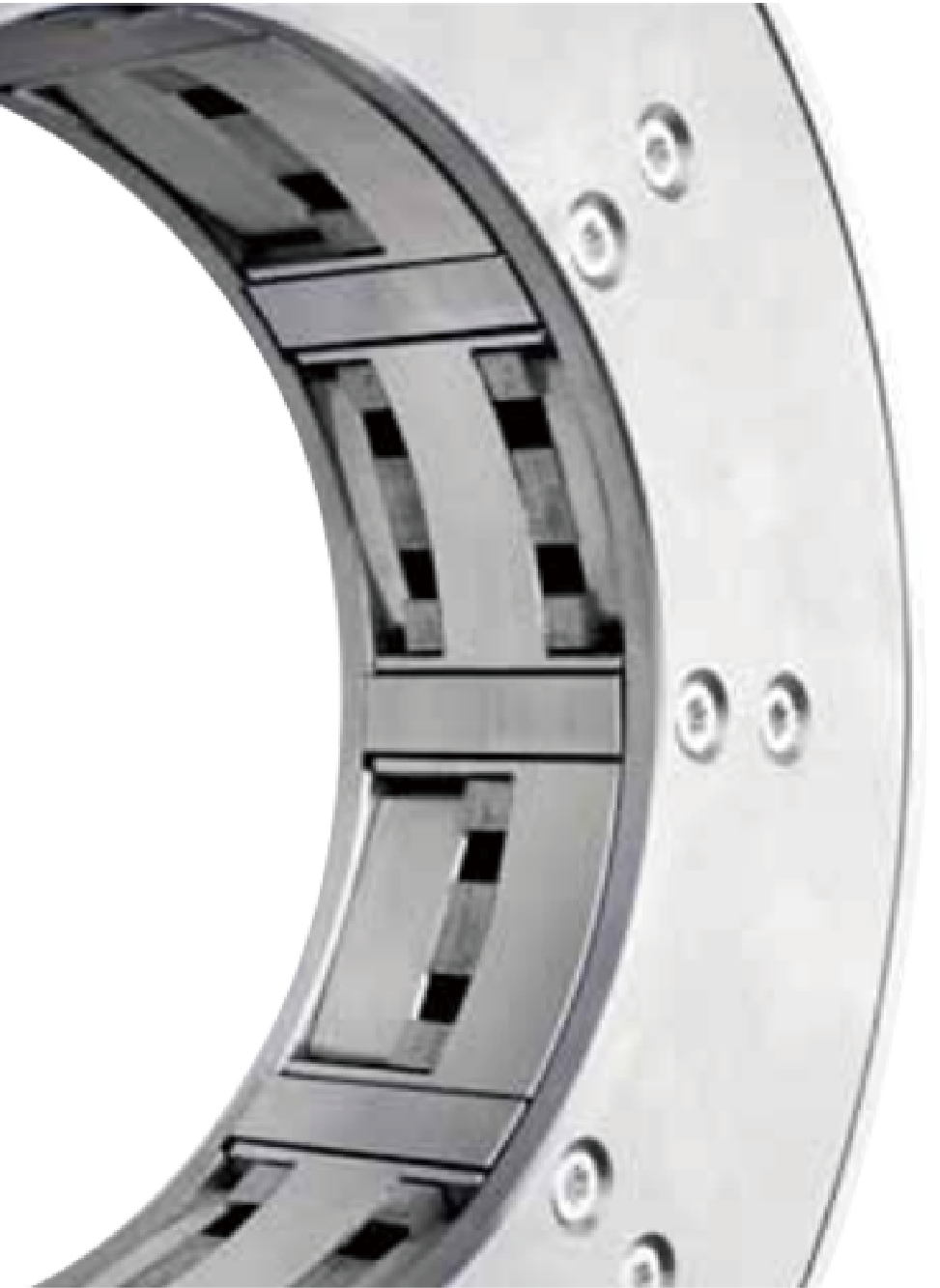

Magnetic bearing

FE optimizes magnetic force design and minimizes eddy current, high load capacity up to 10kN radial and 20KN thrust, rotor unbalance compensation and dynamic support stiffness; No contact, no wear, no lubrication, integrated vacuum potting production process, long life Cycle design.

Sensor

The reliable sensor technology ensures the stable operation of the whole maglev bearing system. One sensor unit (3 displacement, 1 rotation) standby pulse sensor has four induction channels; Low noise and high resolution design, integrated protection to shield external magnetic field

Machine structure

PLC electric control system

-Real-time monitoring of system data and trajectories with multiple protection alerts.

- Circulating cooling system with constant temperature and humidity control for the electronic system, enhancing lifespan and stability.

-IoT database management with a backend service platform for modular equipment efficiency management.

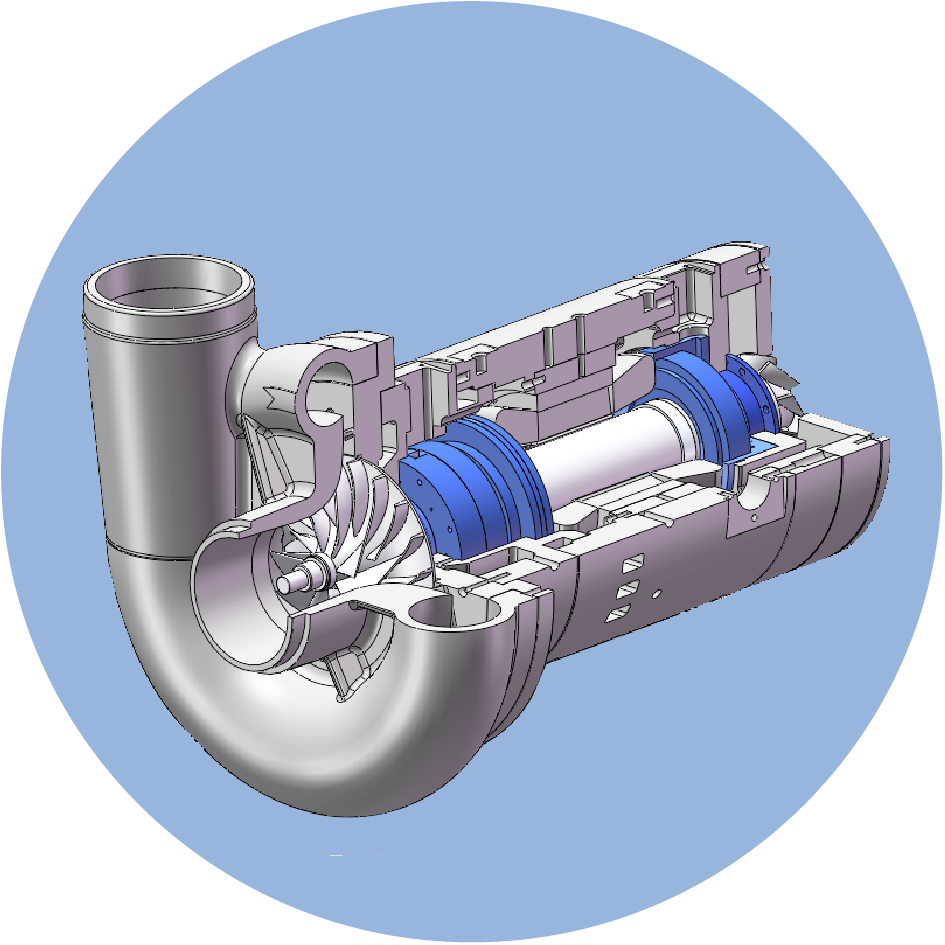

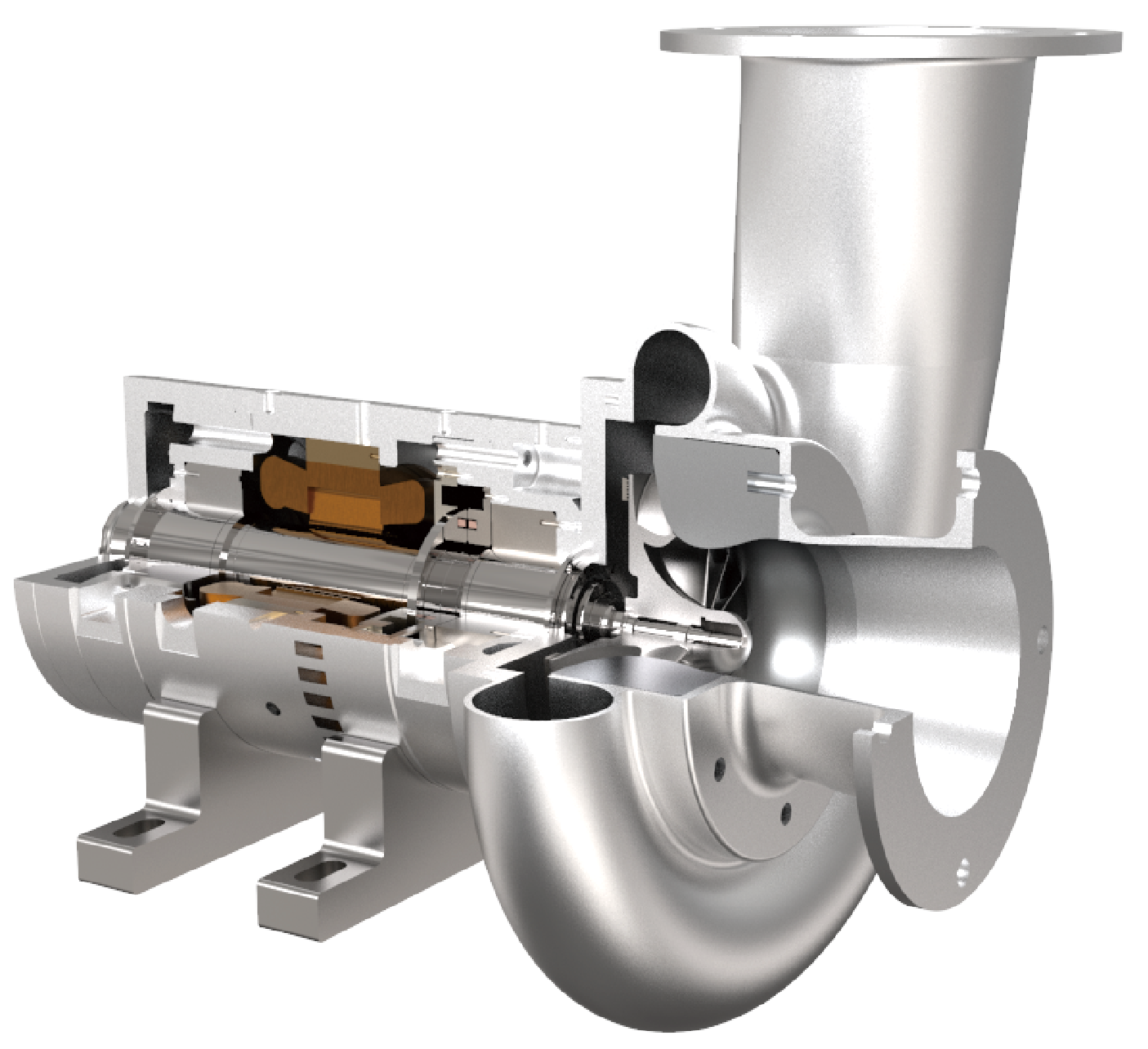

Permanent magnet high speed airend

-IP54 permanent magnet synchronous motor with a fully sealed cooling system and liquid-gas exchange, ideal for high-temperature, high-humidity, and corrosive environments.

-PMSM permanent magnet synchronous motor is optimized for high-speed rotation, with an efficiency of more than 97%. Accurate speed control can be achieved through the frequency converter;

-Precision machining of three-dimensional flow impeller;

-Five degree of freedom magnetic bearing;

-Liquid cooling / air cooling.

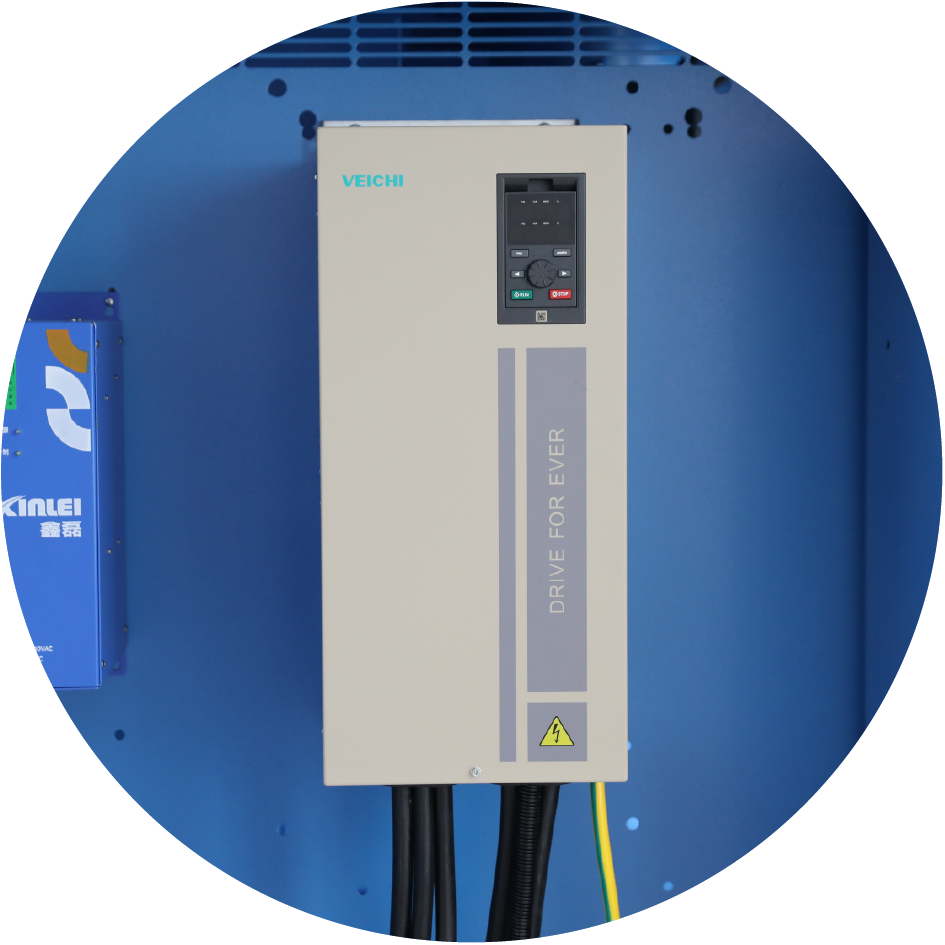

High efficiency frequency converter

-Adopt famous brand frequency converter, with high stability and reliability；

-Provide miniaturization algorithm for high-speed rotation；

-Achieve energy-saving high-speed rotation function by adjusting frequency (Hz).

Magnetic bearing controller

-Real-time dynamic balance online detection to predict impeller and volute foreign object attachment in advance.

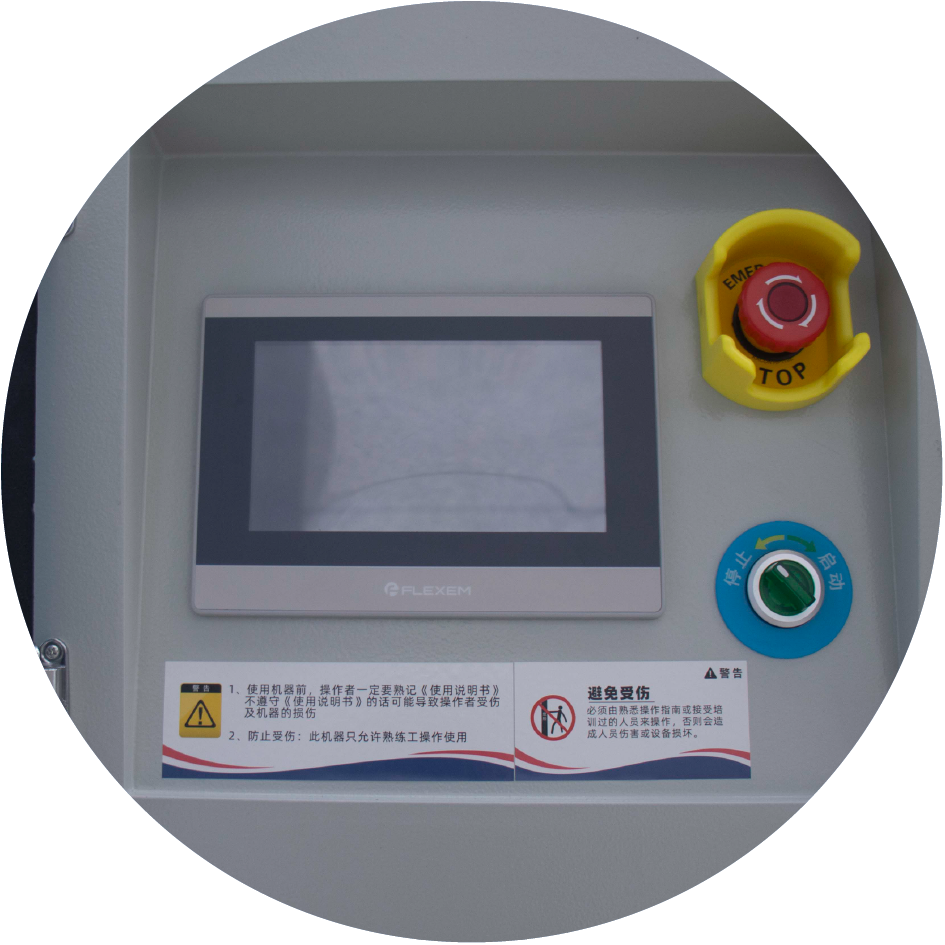

Intelligent operation panel

-Touch screen screen real-time monitoring equipment operation;

-Intelligent remote control;

-Automatic fault alarm, easy to analyze fault causes.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
